e-ATA LE
e-ATA LE
BEYOND DISTANCE
NO DISTANCE IS TOO FAR

Karsan e-ATA LE is not just a vehicle; it’s a silent, sustainable, and versatile transportation solution that makes distances accessible and redefines the boundaries of mobility. With its high battery capacity, best-in-class range of over 500 km, fast-charging advantage, and zero-emission technology, e-ATA LE redefines distance by turning the travel into a seamless, connected journey. Offering Smart Transit for Nearby Cities & Suburbs, e-ATA LE brings flexibility and efficiency together in urban mobility.



Total Length (m)

12 m

High Battery Capacity

500 km

Maximum Passenger Capacity

Up to 90

Unmatched Adaptability in Every Condition
UNMATCHED ADAPTABILITY IN EVERY CONDITION
With its high torque power and advanced driving performance, e-ATA LE adapts to all types of road conditions. It ensures smooth and safe driving even on steep hills, maximizing route efficiency. Delivering consistent performance on every trip, e-ATA LE enables uninterrupted operations across all transit lines.
Energy Everywhere. Performance Anytime
ENERGY EVERYWHERE. PERFORMANCE ANYTIME

With customizable LFP battery packs tailored to different needs and a flexible charging infrastructure, e-ATA LE ensures uninterrupted operations. Its compatibility with both plug-in and pantograph charging allows for fast charging either in the depot or directly along the route. With DC charging support up to 200 kW, it powers up fast—minimising downtime and maximising time on the road.. Thanks to its long-lasting and reliable battery technology, e-ATA LE delivers high performance for years while providing maximum flexibility for inner-city routes and seamless connections to neighboring cities and suburbs.

100% ELECTRIC POWER 100% FUTURE
100% ELECTRIC POWER 100% FUTURE
With its zero-emission structure, Karsan e-ATA LE is designed not only for today but also for tomorrow. Thanks to its fully electric infrastructure, it offers a quiet, sustainable, and highly efficient travel experience – perfect for routes connecting suburbs and nearby cities, even across 1 to 2-hour distances. Its low operating costs and eco-friendly technology make it the smart choice for fleets ready to lead the way forward.
CLASS-LEADING COMFORT
CLASS-LEADING COMFORT

With 100% forward-facing seat layout, silent drive technology, flexible seating options, and the most powerful climate control capacity in its class, e-ATA LE redefines comfort from the ground up. Offering 24.9 kW inverter cooling and a 30 kW heat pump, it ensures an ideal interior environment in every season—providing a safe, comfortable, and enjoyable journey for both drivers and passengers.

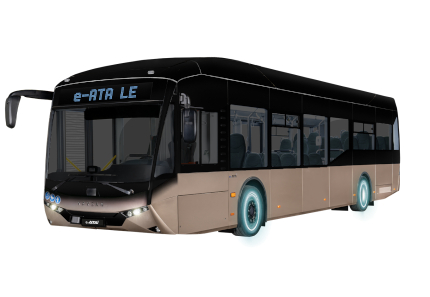

e-ATA LE - SPECS

Specs Vehicle Type

Vehicle Category & Class
Low Entry Electric Bus, M3 Category, Class II, LHD



Specs Powertrain System

Drive Type
Hub Electric Motor

Maximum Power (kW)
250

Specs Performance & Electric System

Range (km)1
500

Charging Type
Plug-in DC charger, Pantograph (Optional)

High Voltage Battery (Type - Capacity)2
LFP - Up to 528 kWh

Charging Time3
Up to 3 h 30 min. with Plug-in DC Charger





1Under realistic conditions. Range may change with battery capacity and driving profile

2Different battery packs can be offered.

3With maximum battery capacity

Specs Body & Suspension System

Body Type
Carbon Steel: Space Frame Steel Tube Structure

Corrosion Resistance
Cataphoresis & Underbody Coating

Front Axle
Independent

Rear Axle
Electric Portal Axle

Brake System
ABS, ASR, EBS, Regenerative Braking System

Door Arrangement
2 Doors

Tires
Front: 315/60 R 22.5 - Rear:  275/70 R22.5

Suspension
Air Suspension, Electronic Leveling, Kneeling Function





Specs Weight & Dimensions

Gross Vehicle Weight (kg)
19.000 (19.500 Optional)

Overall Length (mm)
12.220

Overall Width (mm)
2.550

Overall Height (mm)
3.350

Specs Seat & Passenger Capacity

Maximum Seat Capacity4
41 Seats

Passenger Capacity5
Up to 90

4May change with seat layouts
5May change with battery capacity, seat layout, GVW and technical gross axle value depending on country of registration.

e-ATA LE FEATURES

Features Style
S Standard
O Option

Exterior Design
LED Front & Rear Lights S
LED Day Time Running Lamps S
Front Fog Lamp S
Cornering Lamps O
3rd Stop Lamp1 O
Electrical and Heated Pipe Type Mirrors S
Electrical and Heated Horn Type Mirrors O
Mirror Cameras O
Light Tinted Color Side Glass S
4 Transom Side Window O
Double Glass Windows1 O
Heated Windscreen O
Sliding Heated Driver’s Window S
Metro Type Sliding Doors O
Monocolor LED Destination Signs Preperation (Front + Side + Rear) S
Monocolor LED Destination Signs (Front + Side + Rear) O
Front & Rear 22.5" Steel Wheels S
Mudguard Set O
Wheel Nut Covers S
Cataphoresis & Underbody Coating S
Front & Rear Towing Hook S
Flag Holder O
Body Color: White S
Roof Color: White S
Special Body Color O
Special Roof Color O
Interior Design
Anti-Slip PVC Floor Cover S
Handrail Tubes, Yellow S
Handrail Tubes, Stainless Steel O
Handgrips O
Luggage Rack O
Stop Signs + Digital Clock + Temperature Indicator S
Anchor Cable Type Emergency Hammer S
Billboard O



1Option can be offered during tender process

Features Technology
S Standard
O Option

Charging Infrastructure
Pantograph1 O
Driver Compartment
Full Digital Cluster S
Rear Park Sensors S
Tire Pressure Monitoring System S
Ticket Validator Preparation O
Smart Tachograph S
Cup Holder O
Wardrope Coat Hook O
Telematics System S
FMS Socket S
Passenger Compartment
Passenger Counting System O
Passenger Information System O
Wi-Fi Infrastructure O
Audio & Video Systems
MP3 Player + USB + Aux O
Announcement System for Passenger Area O
External Speakers1 O
Dasboard Mounted 7" LCD Screen, Rear Cam O
Roof Mounted Fixed 19” LCD Screen O



1Option can be offered during tender process

Features Comfort
S Standard
O Option

Cooling & Heating
Passenger A/C with Heating Function S
Driver A/C with Heating Function S
Passenger Sidewall Heaters O
Electrical Heater S
Pre-heater (Diesel)4 O
Vehicle Pre-Conditioning1 O
Air Purifier System O
Turbofan5 O
Driver Compartment
8-Way Pneumatic Driver Seat with 3-Point Seat Belt (SEGE) S
8-Way Pneumatic Driver Seat with 3-Point Seat Belt (ISRI) O
Driver Seat with Heating Function O
Isolated Cabin S
Separated Driver Cabin with High Glass O
Front Manuel Sun Visor (Driver) S
Front Electrical Sun Visor (Driver) O
Driver Side Window Manuel Sun Visor O
Cruise Control O
Passenger Area
Shuttle Type Passenger Type S
Backrest Totem and Wheelchair Designations S
Manual Wheelchair Access Ramp S
Electric Wheelchair Access Ramp1 O
Double Electric Wheelchair Access Ramp1 O
USB on Sidewalls (Type A + Type C) S
Door Opening Button (Outside) (For Passenger)1 O
Door Opening Button (Inside) (For Passenger)1 O
Only Rear Side Door Inside Mirrors O
Hand Luggage Area O




Option can be offered during tender process.
4 Option includes Fire Supression System for pre-heater area.
5 It may not be selected depending on battery capacity.

Features Safety
S Standard
O Option

GSR Package2 S
Cyber Security3 S
Electronic Parking Brake O
ESP - Electronic Stability Program S
AVAS - Acoustic Vehicle Alerting System S
EBS - Electronic Brake System S
ABS - Anti-Lock Braking System S
ASR - Anti-Slippage System S
RBS - Regenerative Brake System S
HSA - Hill Start Aid S
Front Anti Roll Bar S
Rear Anti Roll Bar S
Fire Detection System S
Reverse Gear Buzzer S
First Aid Kit - Red Cross O



1Option can be offered during tender process
2Includes: Emergency stop signal, Tyre pressure monitoring system, Blind spot information system, Reversing information system, Moving off information system Alcohol Interlock Facilitation Installation, Driver drowsiness and inattention warning, Intelligent speed assistance.
3Includes: ECE R.155: Protection of vehicle against cyberattacks; ECE R.156: Software update and software updates management system

e-ATA LE - PASSENGER SEATS


Karsan e-ATA LE is not just a vehicle; it’s a silent, sustainable, and versatile transportation solution that makes distances accessible and redefines the boundaries of mobility. With its high battery capacity, best-in-class range of over 500 km, fast-charging advantage, and zero-emission technology, e-ATA LE redefines distance by turning the travel into a seamless, connected journey. Offering Smart Transit for Nearby Cities & Suburbs, e-ATA LE brings flexibility and efficiency together in urban mobility.

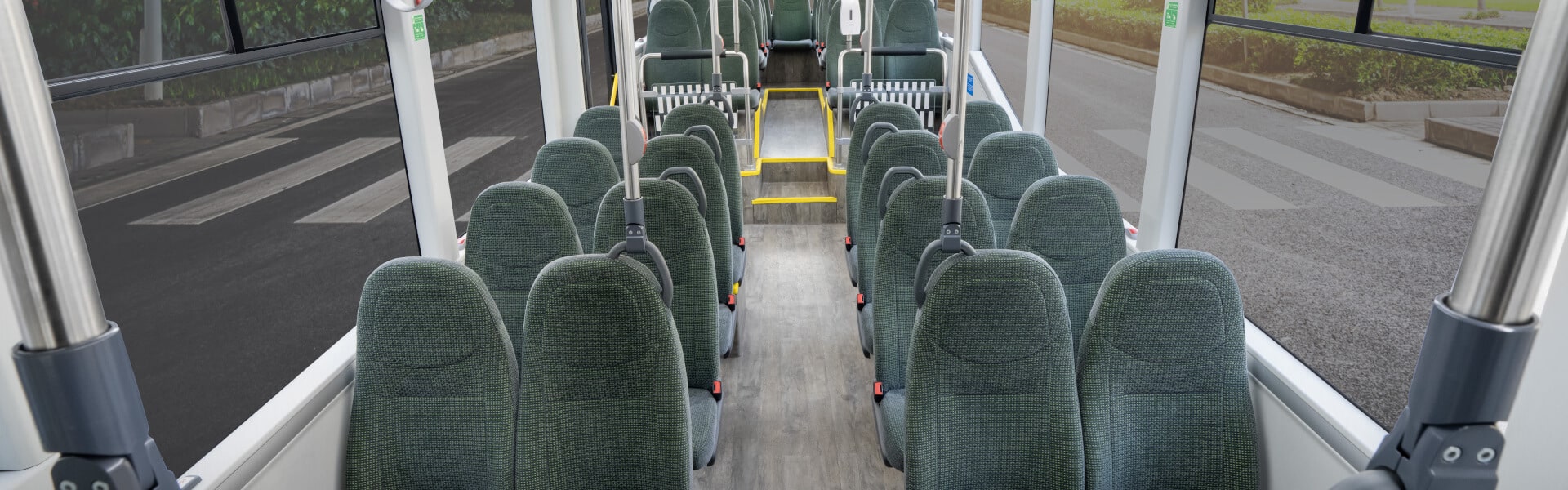

Passenger Seats
CLASS-LEADING COMFORT
With 100% forward-facing seat layout, silent drive technology, flexible seating options, and the most powerful climate control capacity in its class, e-ATA LE redefines comfort from the ground up. Offering 24.9 kW inverter cooling and a 30 kW heat pump, it ensures an ideal interior environment in every season—providing a safe, comfortable, and enjoyable journey for both drivers and passengers.
